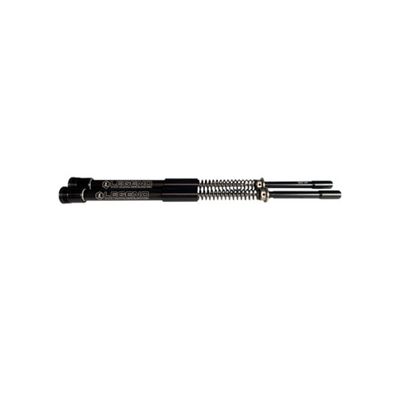

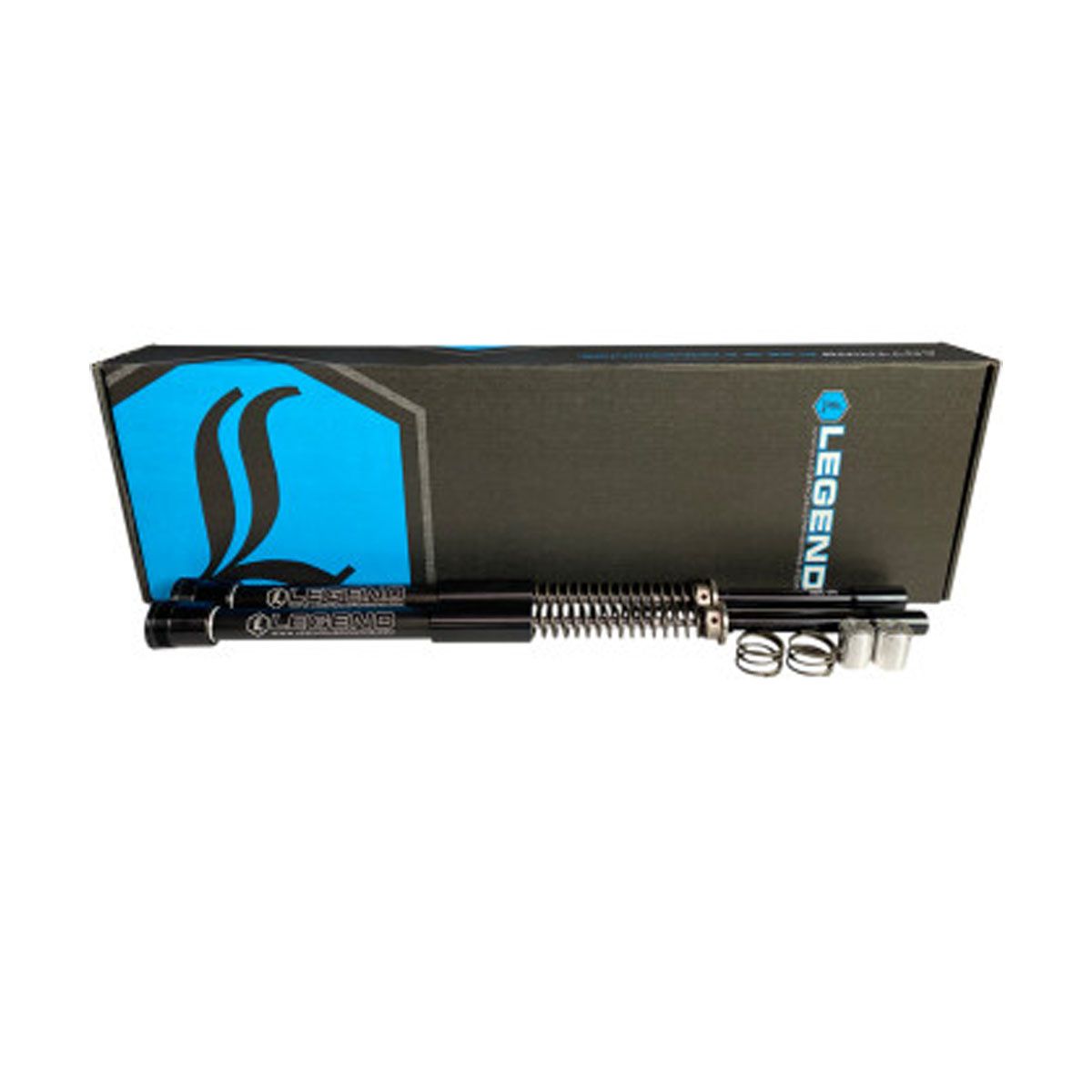

LEGEND SUSPENSION AXEO +2 Front End Suspension - 49 mm - Raised +2" - Dyna '06-'17

NOTE: Designed to be used with stock diameter front wheels. Requires the use of Harley Davidson upper fork tubes OEM P/N 48862-10 (26.85" long). '16-'17 Dyna Lowrider S models require separate purchase of (1) Harley Davidson OEM Part # 45500118 lower retaining bolt to be used in the LH Fork leg. Due to the nature of the design, this front end kit will raise the overall ride height of the motorcycle.

FEATURES

• Easy installation
• Includes 2 mono-tube, dual chambered damper cartridges
• Nitrogen chambers with internal floating pistons
• Performance spring rate
• Machined 303 Stainless threaded pre-load adjuster
• Increased pre-load range allows fine tuning for various riding styles and weights
• Ride quality is smooth and controlled
• Improves stability, cornering and traction
• Eliminates front-end dive during aggressive braking and maneuvering
• Firm feel for high-speed sweeping turns
• Eliminates bottoming out on large bumps or potholes
• Reduces dragging floorboards and pegs
• Designed for optimum performance with Legend rear suspensions
• Lifetime Warranty
• Made by hand in Sturgis, SD USA

SPECIFICATIONS

PACKAGE INFO

FITMENT
