BLEED FEED AIR RIDE SUSPENSION KIT FOR Harley Davidson FLH, FLHT, TOURING MODELS & CUSTOM BAGGERS
$1 499.00
SKU: PAS-1702-FLH
Color
In stock
1
Product Details
Brand: BLEED FEED TECHNOLOGY PLATINUM
This is the best selling Air Ride Suspension Kit for Harley FLH, FLHT, Touring Models and all CUSTOM BAGGERS. Allows the rider to have FULL control of both ride height and rebound. This air ride system fully adjustable at any ride height. So if you like it LOW RIDE LOW no pogo or bottoming out. If you like it stiffer for a little better performance riding than just tighten up the rebound. Platinum, Bleed Feed technology raises the bar as the industries best air ride suspension system. We offer the ultimate custom riding experience. side mounted shock gives up to 3.75″ of lift and dump. “It’s all about the Ride” for all custom baggers. Platinum has a bagger air ride suspension setup for all models.

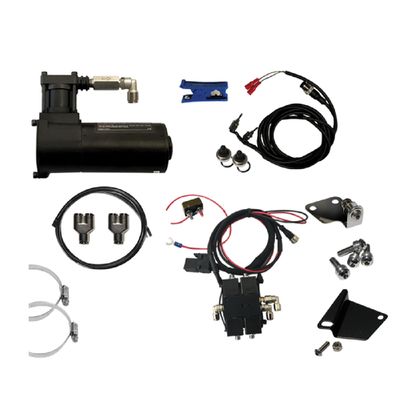

FEATURES

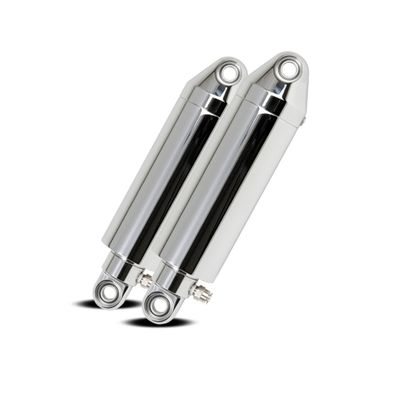

- Air cylinders machined from 6061 T-6 billet aluminum.
- Air-control valve.
- DOT- approved 1/4” line and fitting.
- Switch harness.
- Air compressor.
- Hardware and line cutter.

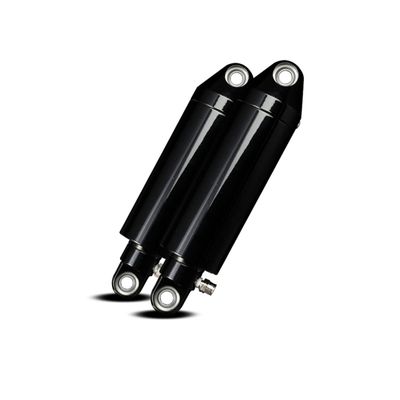

- Black Out Option Customers’ now have the option to choose between chrome and black.
SPECIFICATIONS
- Min. Retracted 9 1/4”
- Max. Extended 13”
- Rear Lift: 3 3/4”
- Shock Travel: 3 3/4”
- Diameter: 2 1/2”
PACKAGE INFO
| WEIGHT: | 35.45 LBS |
| HEIGHT: | 8.25 |
| LENGTH: | 47.5 |
| WIDTH: | 19.5 |
BLEED FEED AIR RIDE SUSPENSION KIT FOR Harley Davidson FLH, FLHT, TOURING MODELS & CUSTOM BAGGERS
