BLEED FEED AIR RIDE KIT FOR Harley EVO/SOFTAIL
$1 399.00
SKU: PAS-8699-EBF
Color
In stock
1
Product Details
Brand: BLEED FEED TECHNOLOGY PLATINUM
This Bleed Feed Air Ride Kit for Harley EVO / Softail for bike models 1986 to current gives up to approximately 4” to 5” of lift depending on stock or after market application. This system will allow you to control your ride height and rebound and is controlled by positive pressure at all times. Easily adjusted at the flip of a switch for complete comfort for the riders weight or road conditions.
FEATURES

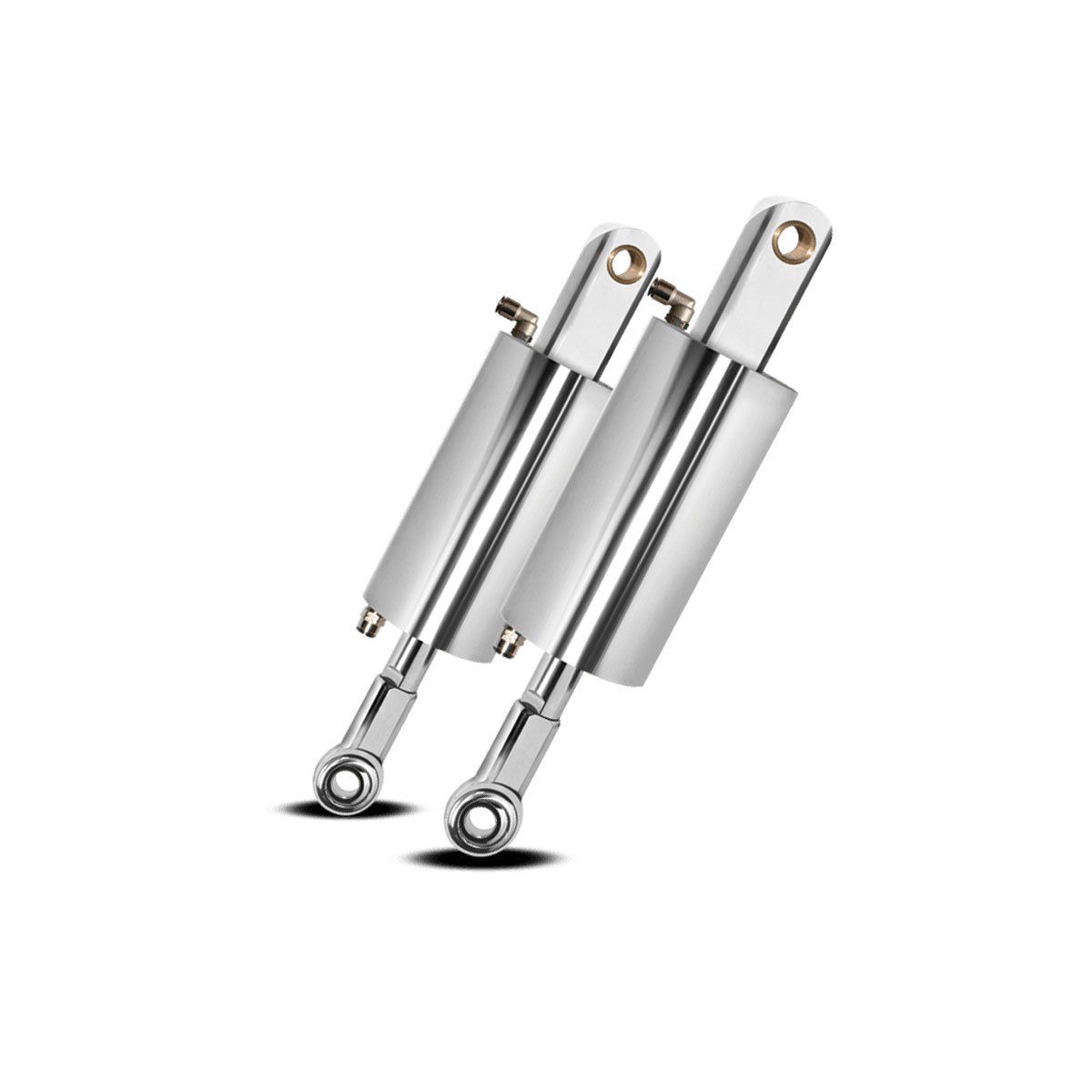

- Two air cylinder machined from 6061 T-6 billet aluminum
- Machined stainless steel rods and end caps.
- Stainless steel splash guard complete with air-control valve assembly fastened to it.
- DOT- approved 1/4” line and fitting, plus switch harness, air compressor, hardware and line cutter.
- Made in the U.S.A.
SPECIFICATIONS
- Min. Retracted 11”
- Max. Extended 13”
- Rear Lift: 5”
- Shock Travel: 2”
- Diameter: 2 3/4”
PACKAGE INFO
| WEIGHT: | 56.2 LBS |
| HEIGHT: | 16 |
| LENGTH: | 40.25 |
| WIDTH: | 23 |
